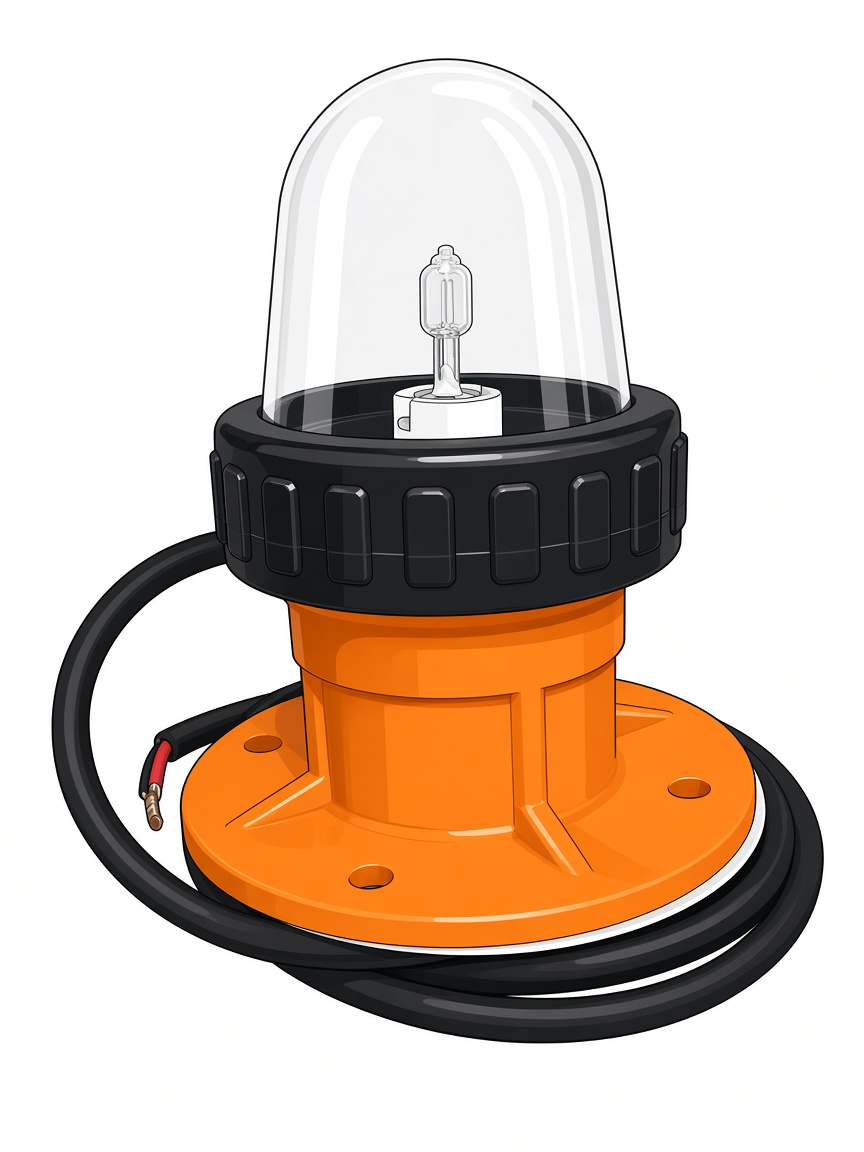

Lifeboat / Life Raft Position Indicating Strobe Light — BSW9812 — IMPA 330264

Description

Key features:

• Marks survival craft position for timely rescue
• Flashing strobe 50–70 flashes per minute
• Luminous intensity ≥4.3 cd in all directions of the upper hemisphere
• Connects to the lifeboat 12V DC supply, 13W
• Sealed unit, no user-replaceable bulb
• SOLAS 1974 and LSA Code compliant, IMO MSC tested
• Approved by 10 classification societies

Specifications:

• Part number: BSW9812
• IMPA: 330264 (equivalent)
• Power supply: DC 12V
• Power: 13W
• Flash frequency: 50–70 flashes/min
• Luminous intensity: ≥4.3 cd, all directions of upper hemisphere
• Construction: sealed unit
• Installation: on hull, at a high/conspicuous point
• Dimensions: 100 x 100 x 120 mm
• Weight: 1 kg
• Compliance: SOLAS 1974 Ch. III Reg. 4, 7, 22, 26, 32, 34; LSA Code MSC.48(66) Ch. IV
• Tested per: MSC.81(70), MSC.200(80), MSC.226(82), MSC.323(89)
• Class certificates: ABS, BV, CCS, DNV, GL, LR, KR, NK, RINA, RS
• HS code: 8531.80.9000

Replacement suitability: The BSW9812 is offered as a compatible replacement / equivalent position-indicating light for Palfinger RSQ 450 A / RSQ 450 G rescue boats (electrical diagram ref. 3FP-100188). It meets the same SOLAS / LSA Code (MSC.48(66), Ch. IV) position-indicating light performance — luminous intensity ≥4.3 cd in all directions of the upper hemisphere, flash rate 50–70 flashes/min — type-tested per Res. MSC.81(70), and class approved by ABS, BV, CCS, DNV, GL, LR, KR, NK, RINA and RS.

One difference from the original unit: the original is a self-contained battery light with pull-pin activation, while the BSW9812 runs on 12V DC (13W) from the boat’s supply — installation is a connection to the rescue boat’s 12V DC system.

Application reference only: Palfinger and RSQ 450 identify the customer’s equipment. BSW9812 is not a Palfinger OEM part and is not MED (wheelmark) approved.
