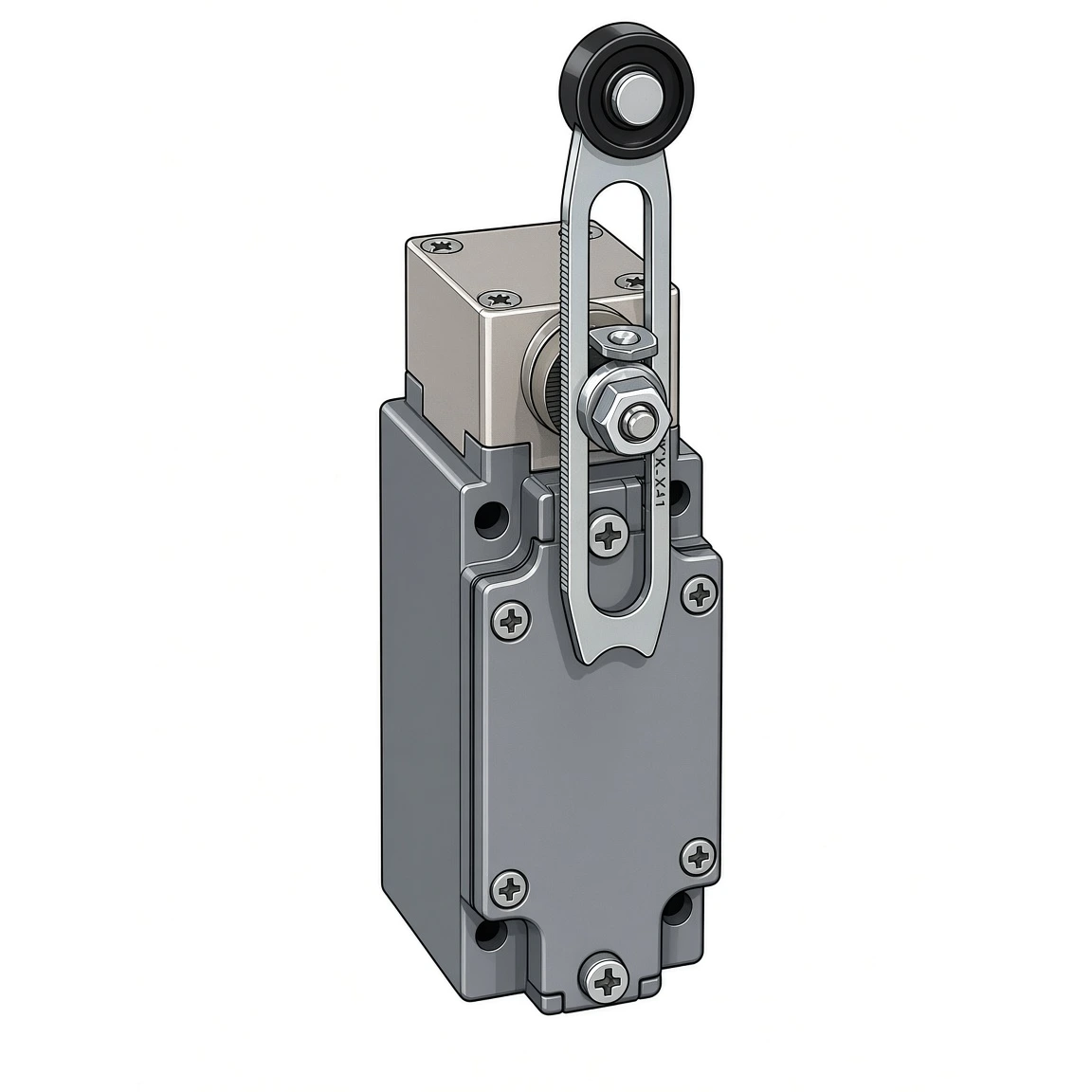

Limit Switch XCKJ10541H29C — Metal, Rotary Head, Variable-Length Roller Lever, 1NC+1NO, M20

Limit Switch XCKJ10541H29C — Metal, Rotary Head, Variable-Length Roller Lever, 1NC+1NO, M20

$35.00

Shipping calculated at checkout.

Heavy-duty standard-format (CENELEC EN 50041) limit switch with a fixed Zamak metal body and rotary head, fitted with a spring-return, variable-length lever and thermoplastic roller for lateral actuation. One NC + one NO snap-action contact, screw-clamp terminals and a single M20 × 1.5 cable entry. IP66 / IK07 protection for demanding industrial and marine machinery.

1 PEOPLE ARE VIEWING THIS RIGHT NOW

ONLY 30 ITEMS LEFT IN STOCK!

SKU: XCKJ10541H29C

30 in stock

Related products

Description

Heavy-duty standard-format (CENELEC EN 50041) limit switch with a fixed Zamak metal body and rotary head, fitted with a spring-return, variable-length lever and thermoplastic roller for lateral actuation. One NC + one NO snap-action contact, screw-clamp terminals and a single M20 × 1.5 cable entry. IP66 / IK07 protection for demanding industrial and marine machinery.

Key features

  • Zamak die-cast metal body and head, fixed-body mounting
  • Rotary head with spring-return variable-length roller lever (thermoplastic roller)
  • 1 NC + 1 NO snap-action contacts (Zb), 10 A thermal current
  • AC-15: 3 A at 240 V | DC-13: 0.27 A at 250 V
  • IP66 / IK07; operating range −25 to +70 °C
  • 30 million cycles mechanical durability

Technical specifications

Part number XCKJ10541H29C
Product type Limit switch, EN 50041 format
Body / head Fixed metal body, Zamak; Zamak rotary head
Operator Spring-return variable-length lever, thermoplastic roller
Type of approach Lateral, 1 or 2 programmable directions
Switch actuation By 30° cam
Contacts 1 NC + 1 NO, 2 poles, snap action, form Zb
Terminal marking 13-14 NO / 21-22 NC
Positive opening Without
Rated current [Ie] AC-15: 3 A / 240 V (A300); DC-13: 0.27 A / 250 V (Q300)
Thermal current [Ithe] 10 A
Insulation voltage [Ui] 500 V (IEC 60947-1, PD3); 300 V (UL 508 / CSA)
Impulse withstand [Uimp] 6 kV (IEC 60664 / IEC 60947-1)
Short-circuit protection 10 A cartridge fuse, type gG
Electrical connection Screw-clamp, 1 × 0.34 to 2 × 1.5 mm²
Cable entry 1 × M20 × 1.5; cable Ø 7–13 mm
Tripping torque / max. speed 0.25 N·m / 1.5 m/s
Mechanical durability 30,000,000 operating cycles
Electrical durability 5 million cycles, DC-13 (24 V 10 W / 48 V 7 W / 120 V 4 W)
Degree of protection IP66 (IEC 60529); IK07 (EN 50102)
Shock / vibration 50 gn / 11 ms; 25 gn, 10–500 Hz
Ambient temperature −25 to +70 °C (storage −40 to +70 °C)
Protective treatment TH
Dimensions (W × H × D) 40 × 77 × 44 mm
Net weight 0.485 kg
Standards IEC/EN 60947-5-1, IEC/EN 60204-1, EN 50041, UL 508, CSA C22.2 No 14
Certifications CCC
