Ring Joint Gasket BX-155 — SS 304, API 6BX 4-1/16 in, 10,000–20,000 psi
Shipping calculated at checkout.
For a quote, email us at sales@mantto.com

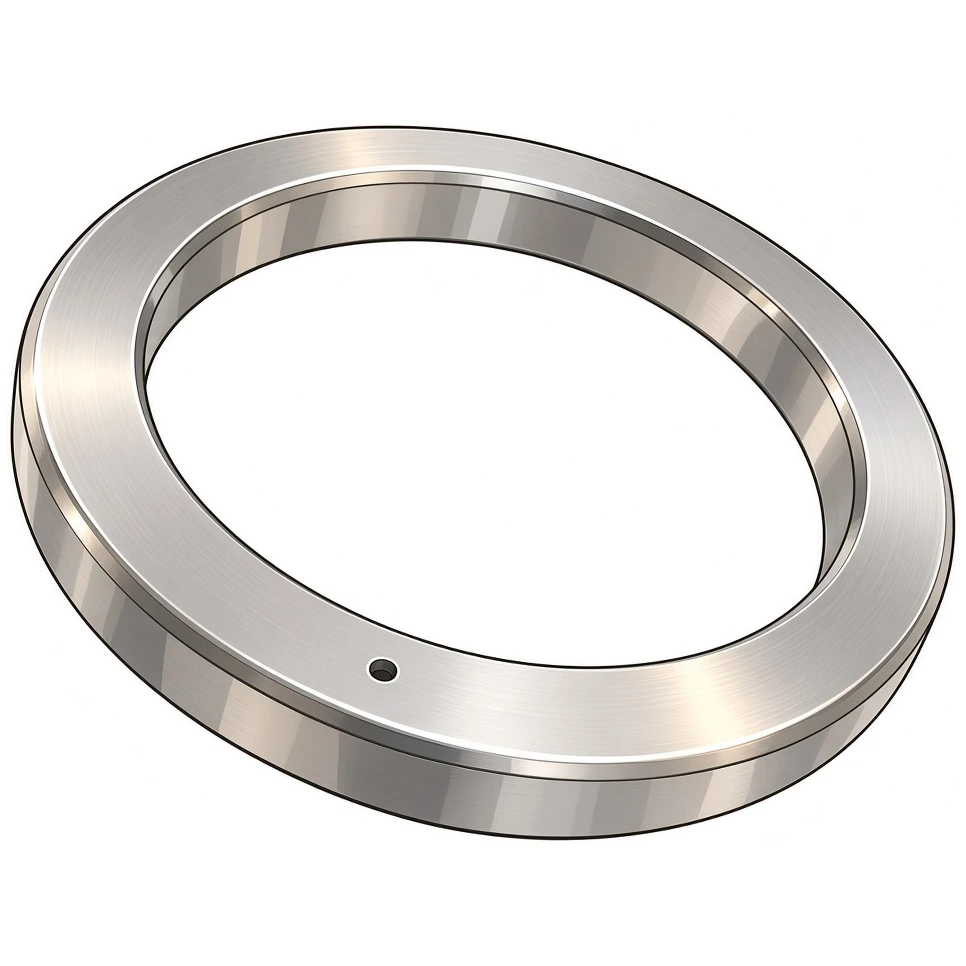

Type BX pressure-energized ring joint gasket, machined from Type 304 stainless steel, dimensioned to API Specification 6A and ASME B16.20 for 4-1/16″ nominal API 6BX flanges rated 10,000, 15,000 and 20,000 psi. One pressure-passage hole equalizes pressure that may be trapped in the ring grooves.
1 PEOPLE ARE VIEWING THIS RIGHT NOW
ONLY 10 ITEMS LEFT IN STOCK!
SKU: BX-155
Related products
Description
Type BX pressure-energized ring joint gasket, ring number BX-155, machined from Type 304 stainless steel (UNS S30400), solution annealed & quenched. Dimensioned to API Specification 6A (Table D.12 / E.12) and ASME B16.20 for 4-1/16″ nominal API 6BX flanges rated 10,000, 15,000 and 20,000 psi. For API 6BX flanges only.
Key features
- Pressure-energized BX design; only BX gaskets are used with API 6BX flanges
- When correctly fitted, allows face-to-face contact of the flange faces; gasket is trapped on both ID and OD
- One pressure-passage hole (Ø0.06″) on the ring centerline
- Sealing-surface finish not rougher than 32 µin (0.8 µm)
- OD marked with ring number, material code and heat / job-lot traceability
Technical specifications
| Standards | API Spec 6A (Table D.12 / E.12); ASME B16.20 |
| Flange fitted | API 6BX, 4-1/16″ nominal size |
| Flange pressure rating | 10,000 / 15,000 / 20,000 psi |
| Material | Type 304 SS (UNS S30400), solution annealed & quenched |
| Max. hardness | 83 HRB (160 HB) |
| Pressure-passage hole | 1 per ring, Ø0.06″ ±0.02 (Ø1.6 mm ±0.5) |
| Marking (on OD) | “BX 155” + “304” + F/C/W, date, traceability (API 6A); S304 (ASME B16.20) |
BX-155 dimensions (API 6A Table E.12 / D.12)
| Dimension | Inches | Millimeters |
|---|---|---|
| Outside diameter of ring (OD) | 5.825 (+0 / −0.006) | 147.96 (+0 / −0.15) |
| Width of ring (A) | 0.560 (+0.008 / −0) | 14.22 (+0.20 / −0) |
| Height of ring (H) | 0.560 (+0.008 / −0) | 14.22 (+0.20 / −0) |
| Diameter of flat (ODT) | 5.746 (±0.002) | 145.95 (±0.05) |
| Width of flat (C) | 0.481 (+0.006 / −0) | 12.22 (+0.15 / −0) |
| Hole size, pressure passage (D) | 0.06 (±0.02) | 1.6 (±0.5) |
| Radius on ring (R1) | 0.04 – 0.07 | 1.1 – 1.7 |
Taper angle 23° ±¼°. Mating API 6BX groove (reference): depth E 0.33″ (8.33 mm), groove OD G 5.930″ (150.62 mm), groove width N 0.698″ (17.73 mm). Inch and metric values are separate standard values, not exact conversions.
USE: For API 6BX flanges only; do not use BX rings in API 6B (R / RX) grooves. Ring gaskets should be softer than the mating flange groove. TEMPERATURE: API 6A and ASME B16.20 leave material selection for service conditions to the user; confirm suitability of 304 SS for the service temperature and fluid.
